Thông số kỹ thuật

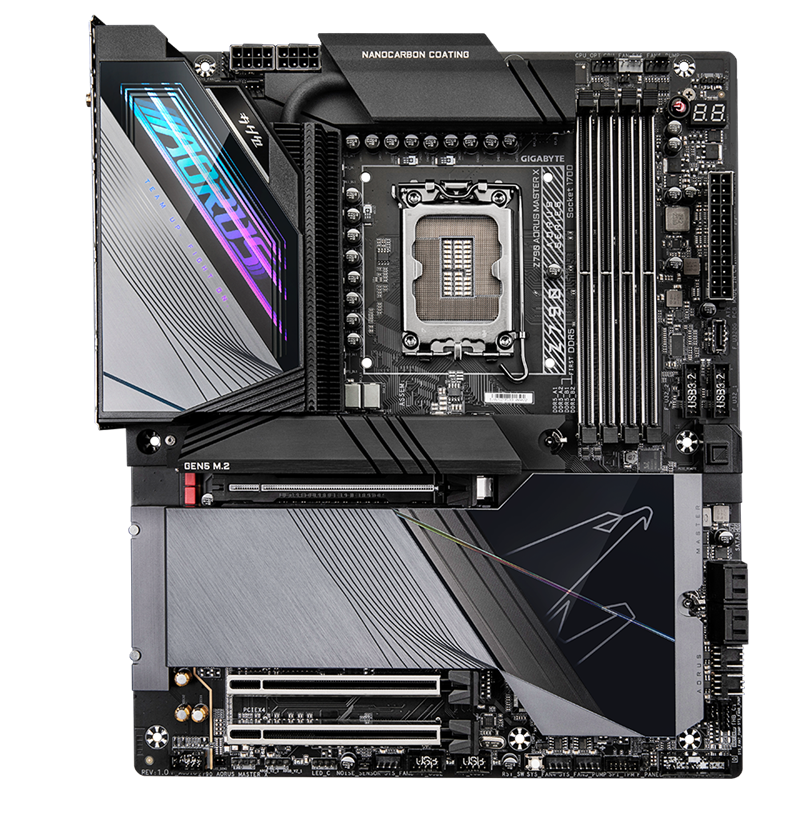

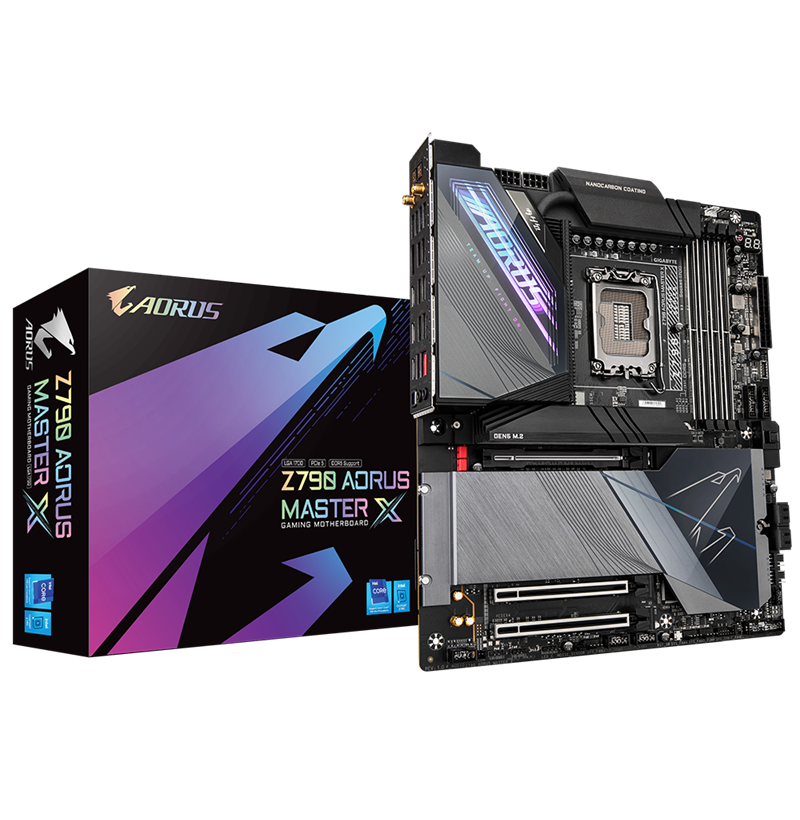

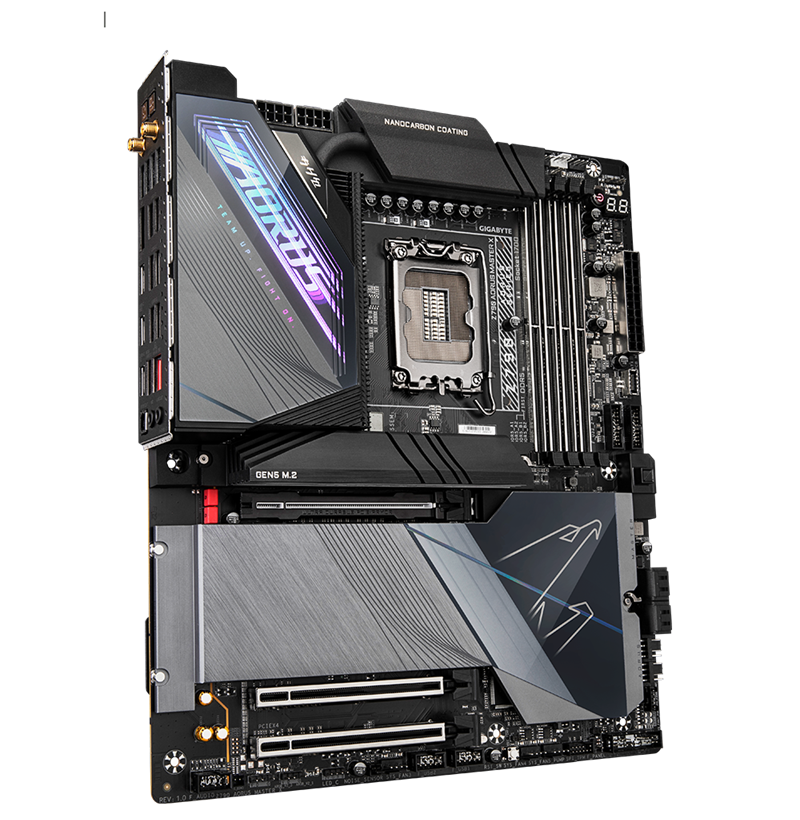

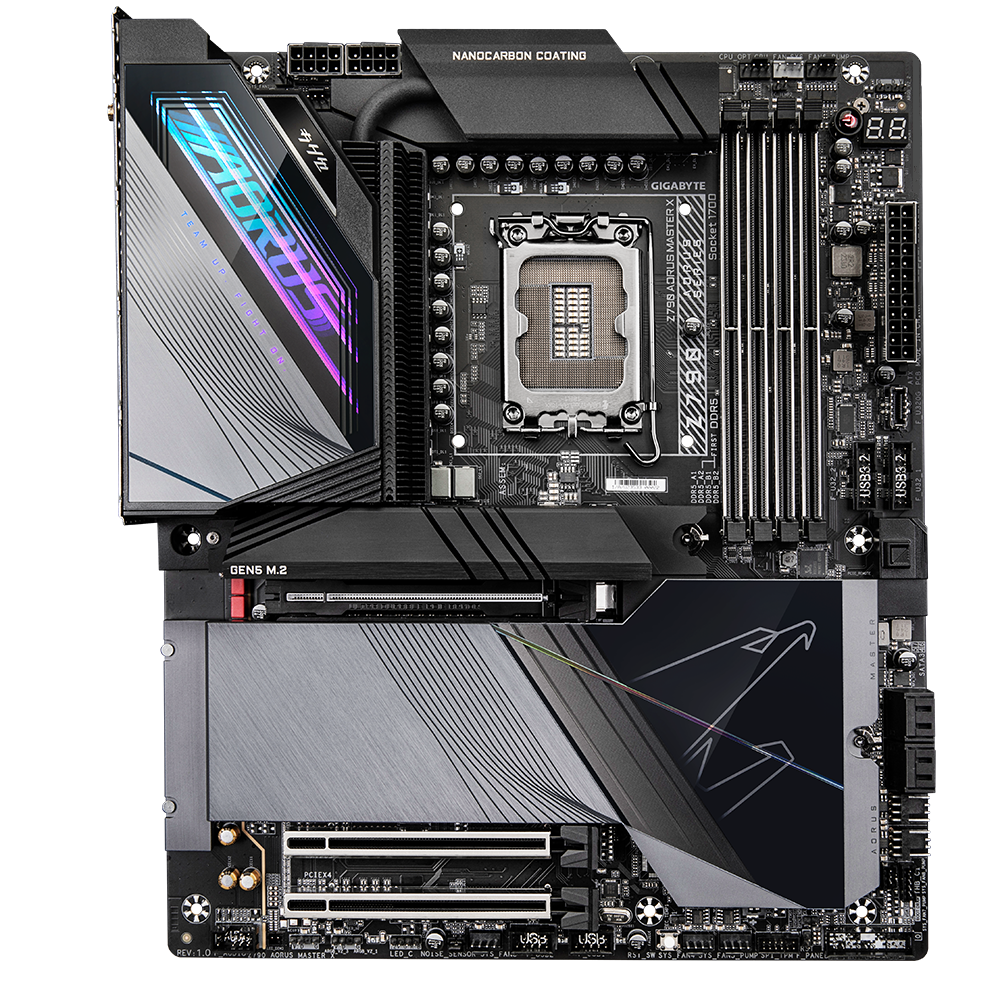

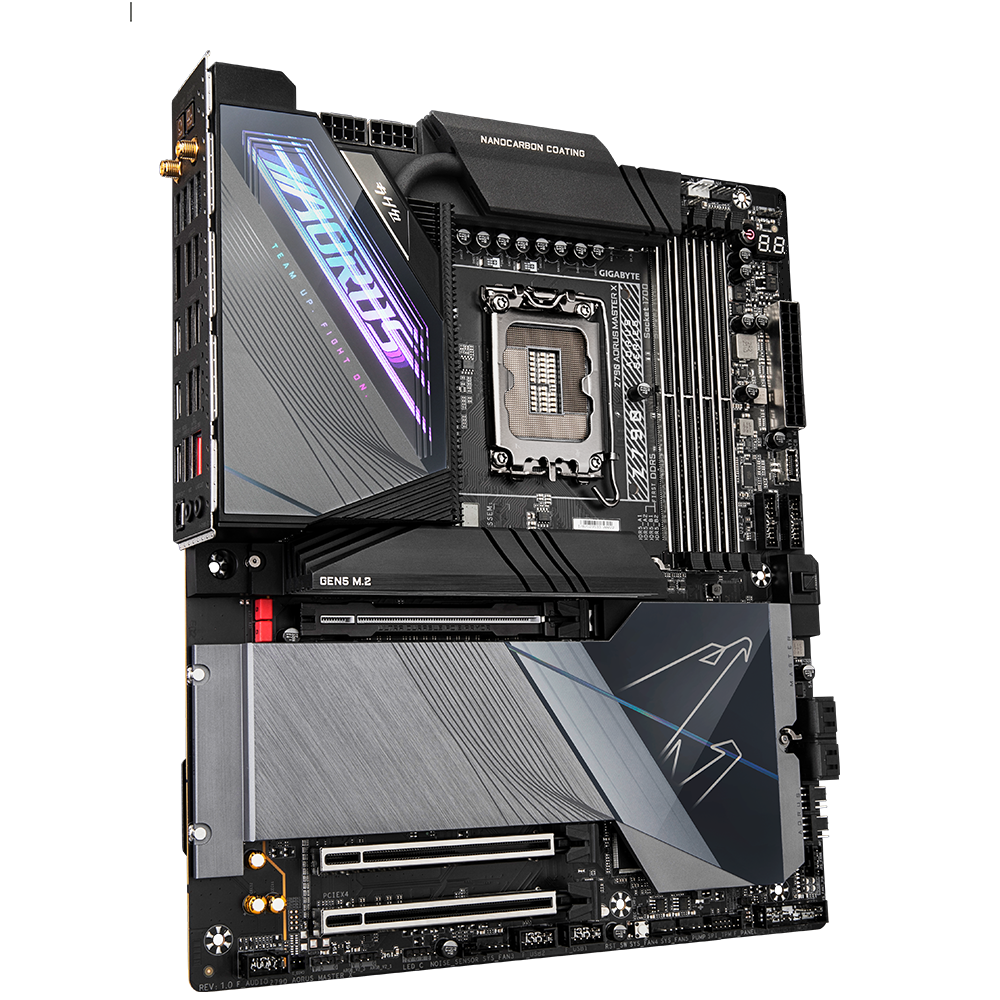

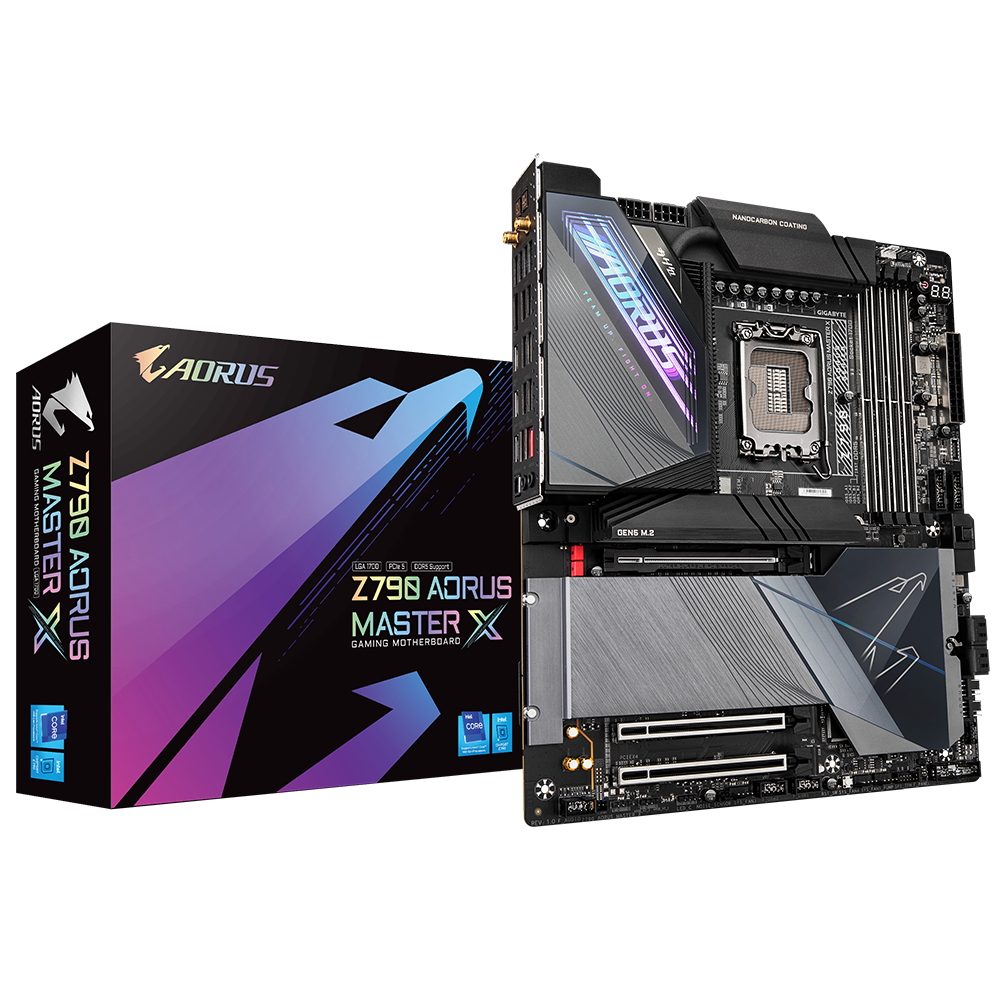

MAINBOARD GIGABYTE Z790 AORUS MASTER X
Thương hiệu: GIGABYTE
Bảo hành: 36 tháng
Chipset: Z790
Socket : Intel LGA 1700
Hỗ Trợ CPU: 14th, 13th, 12th Intel Core, Pentium Gold và Celeron
Khe ram tối đa: 4 khe
Hỗ trợ bộ nhớ tối đal 192GB
BUS RAM hỗ trợ: 4800, 4000, 5200(O.C.), 5400(O.C.), 5600(O.C.), 5800(O.C.), 6000(O.C.), 6200(O.C.), 6400(O.C.), 6600(O.C.), 6800(O.C.), 7000(O.C.), 7200(O.C.), 7400(O.C.), 7600(O.C.), 7800(O.C), 7900(O.C), 7950(O.C), 8000(O.C), 8200(O.C), 8266(O.C)
Cổng xuất hình: 1 x DisplayPort
Cổng trên main:
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 4 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 5 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
- Voltage Measurement Points

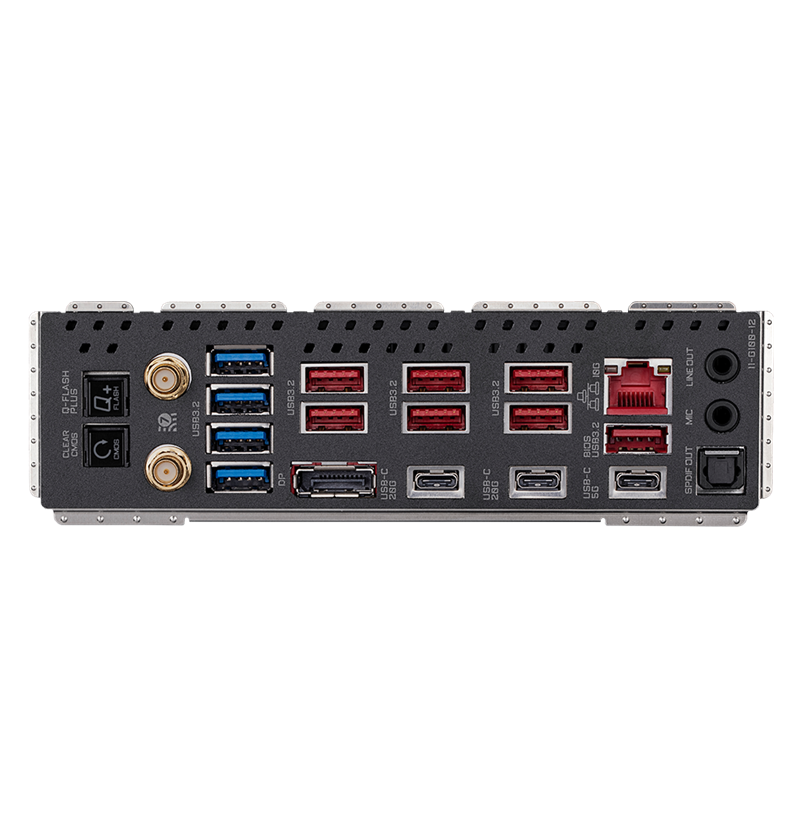

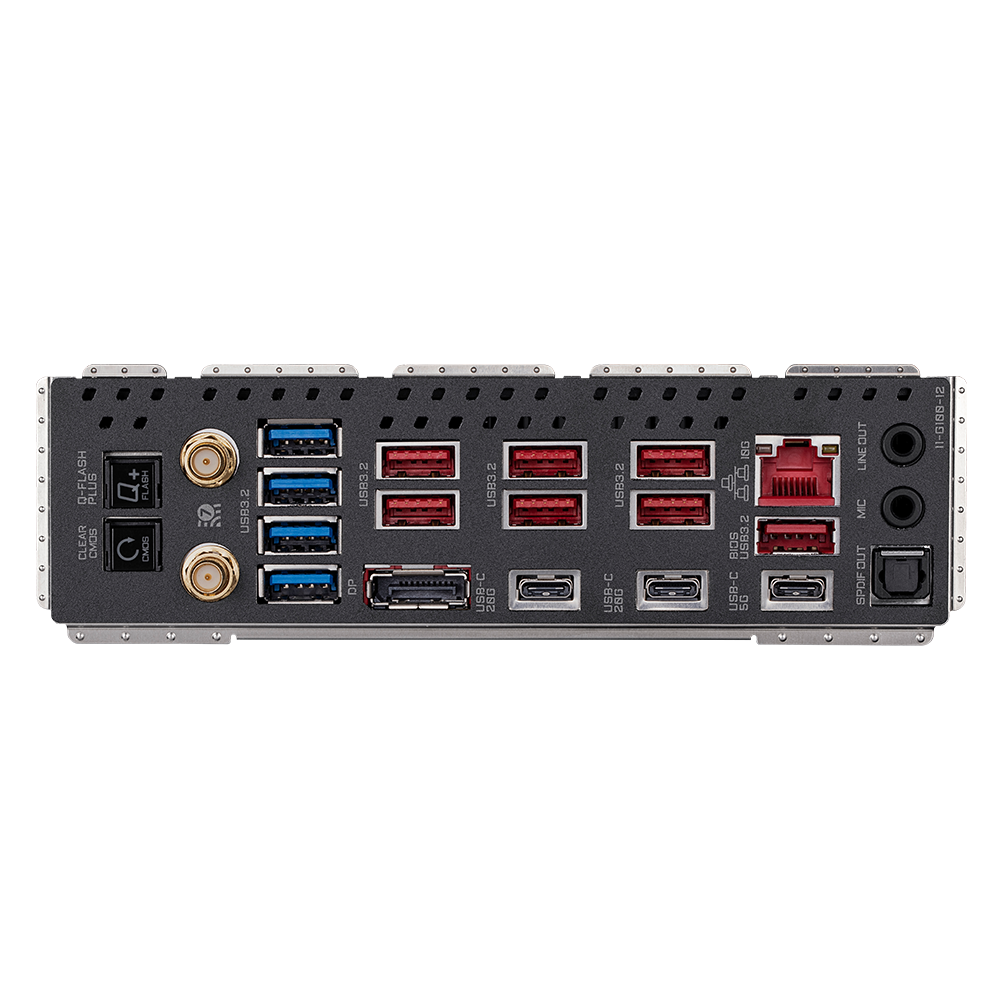

Cổng phía sau:
- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support
- 7 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
Âm thanh:
- Realtek® ALC1220-VB CODEC
- ESS ES9118 DAC chip
- Support for DTS:X® Ultra
- High Definition Audio
- 2/4/5.1-channel
- Support for S/PDIF Out
Lưu trữ:
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Khe cắm mở rộng:
- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
BIOS:
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
LAN:
- Marvell® AQtion AQC113C 10GbE LAN chip
- (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ Mainboard: E-ATX
Kích thước: 30.5cm x 26.0cm
