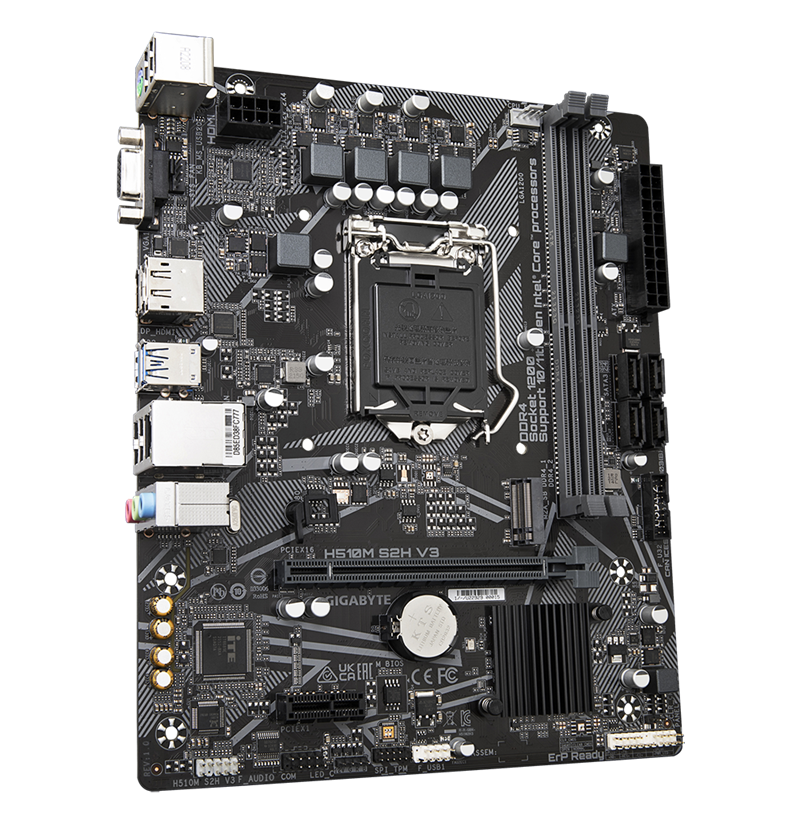

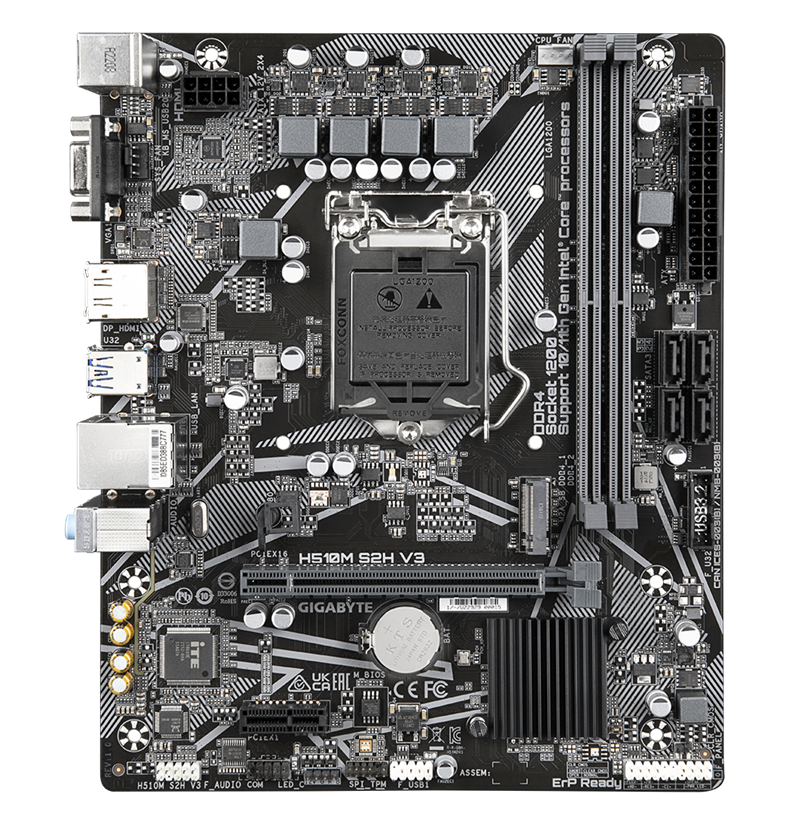

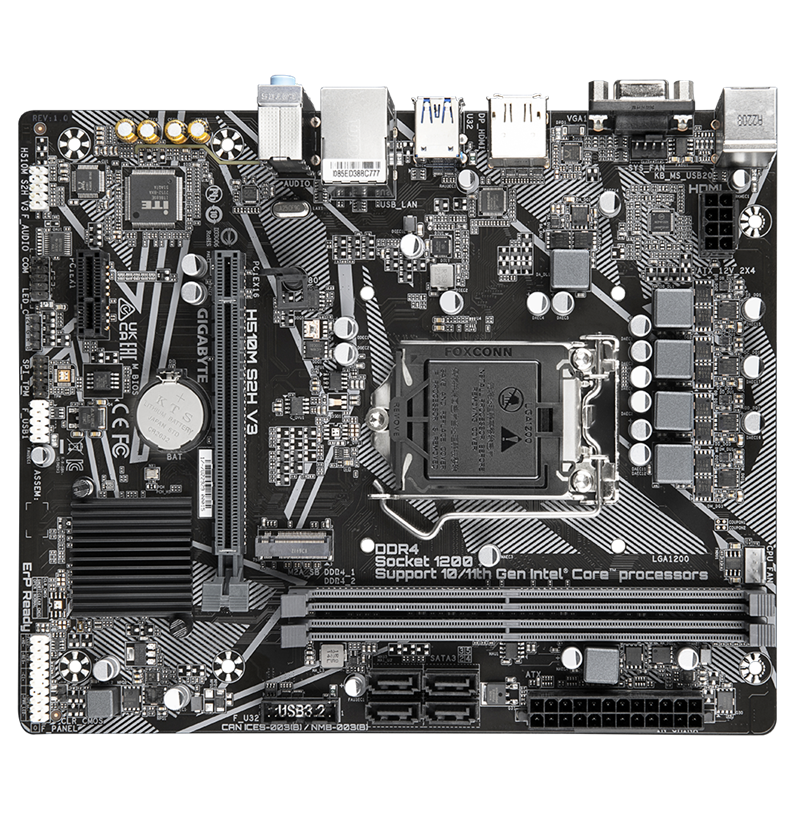

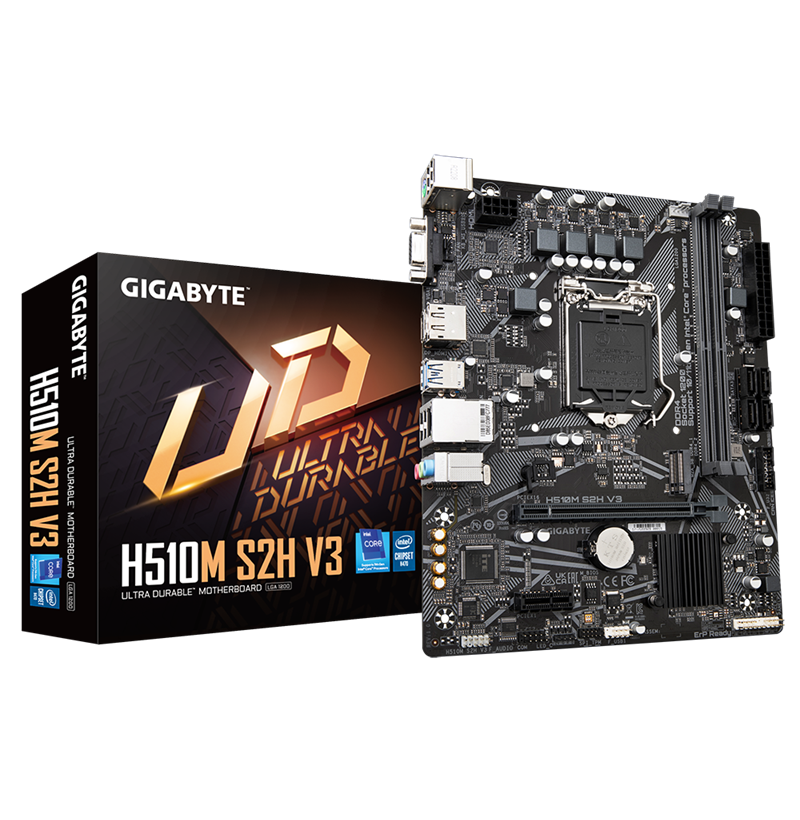

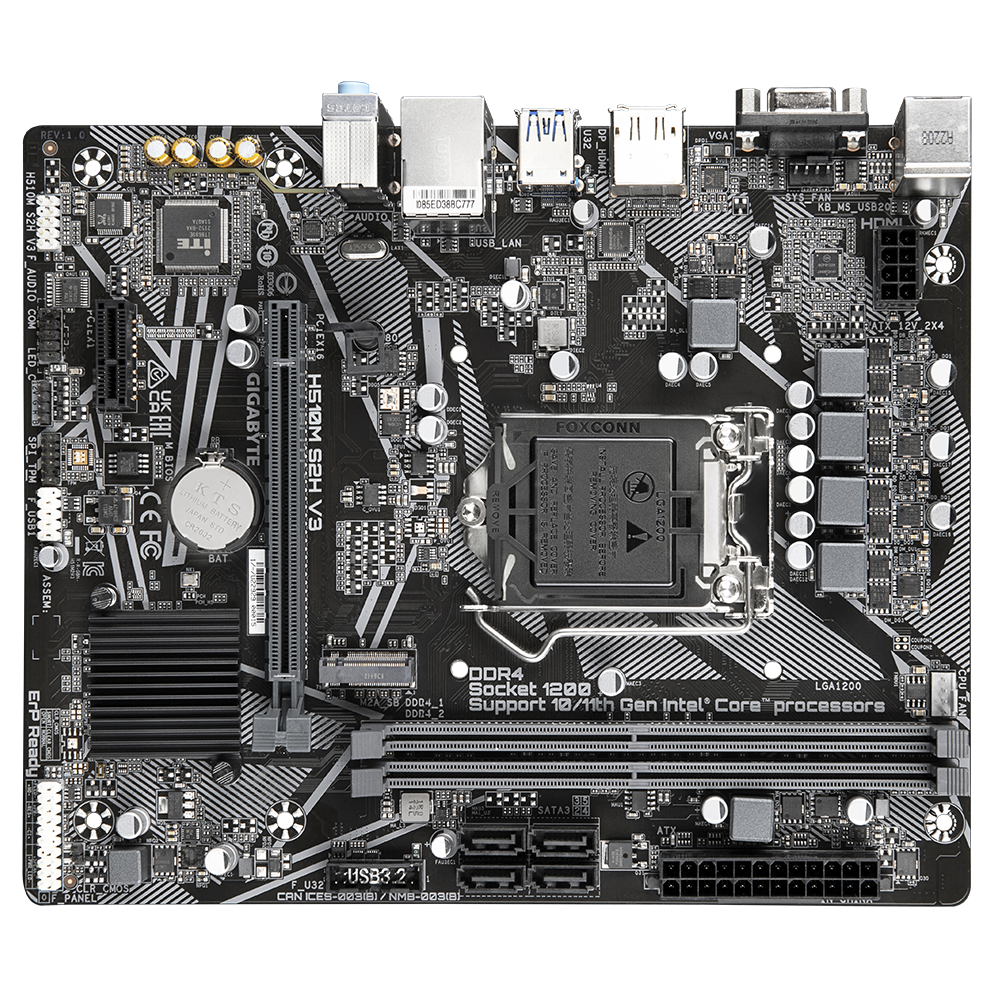

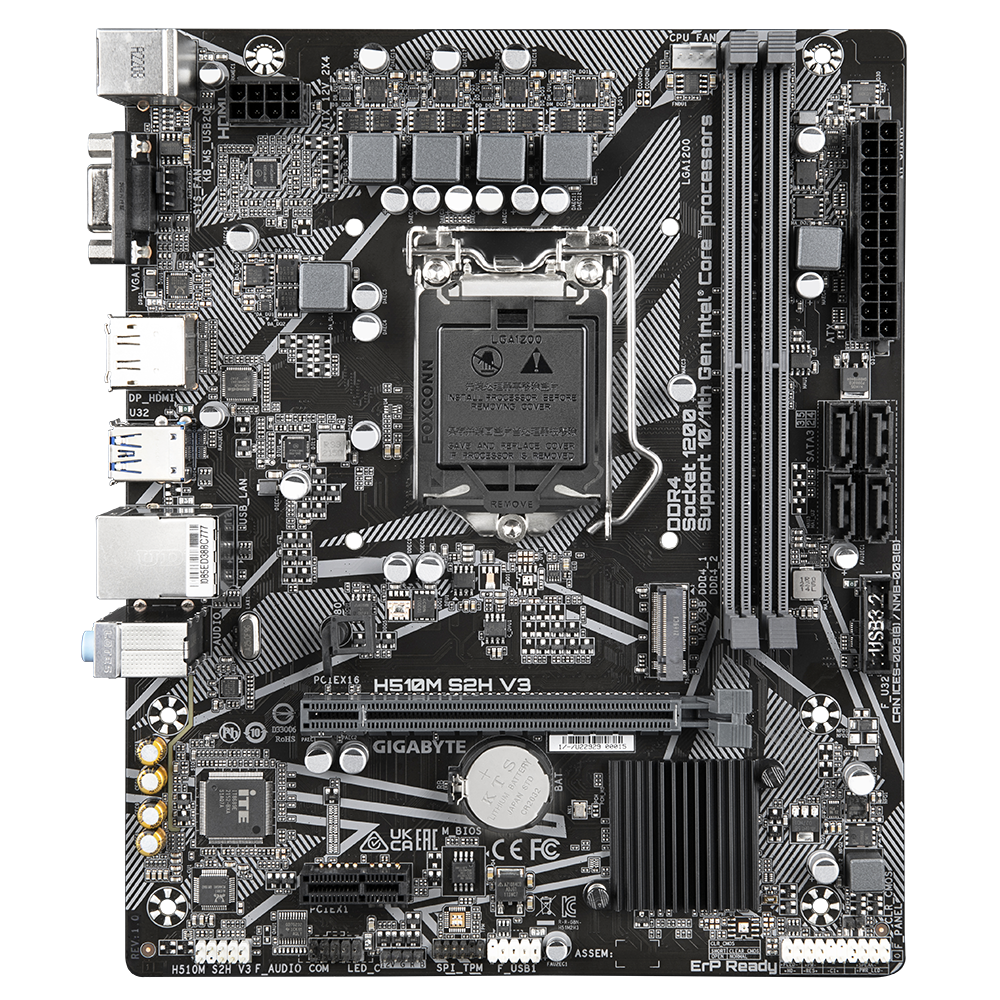

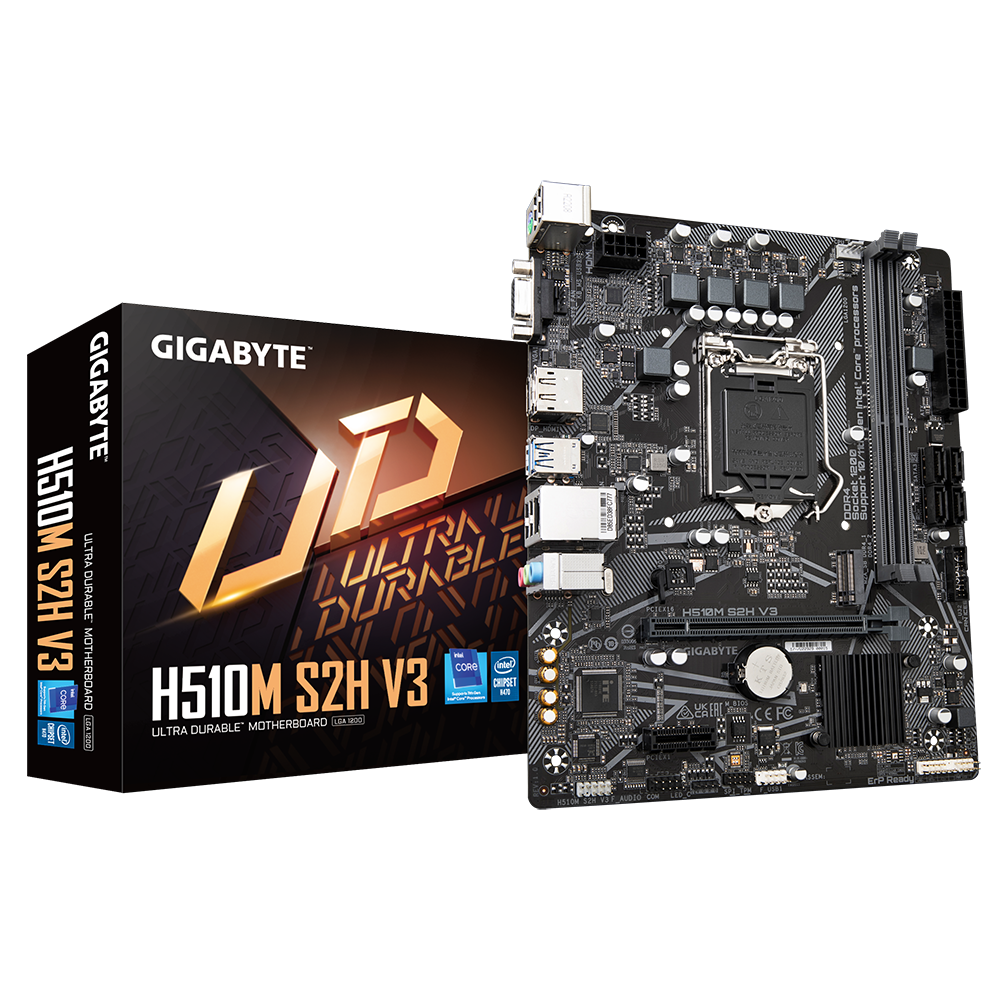

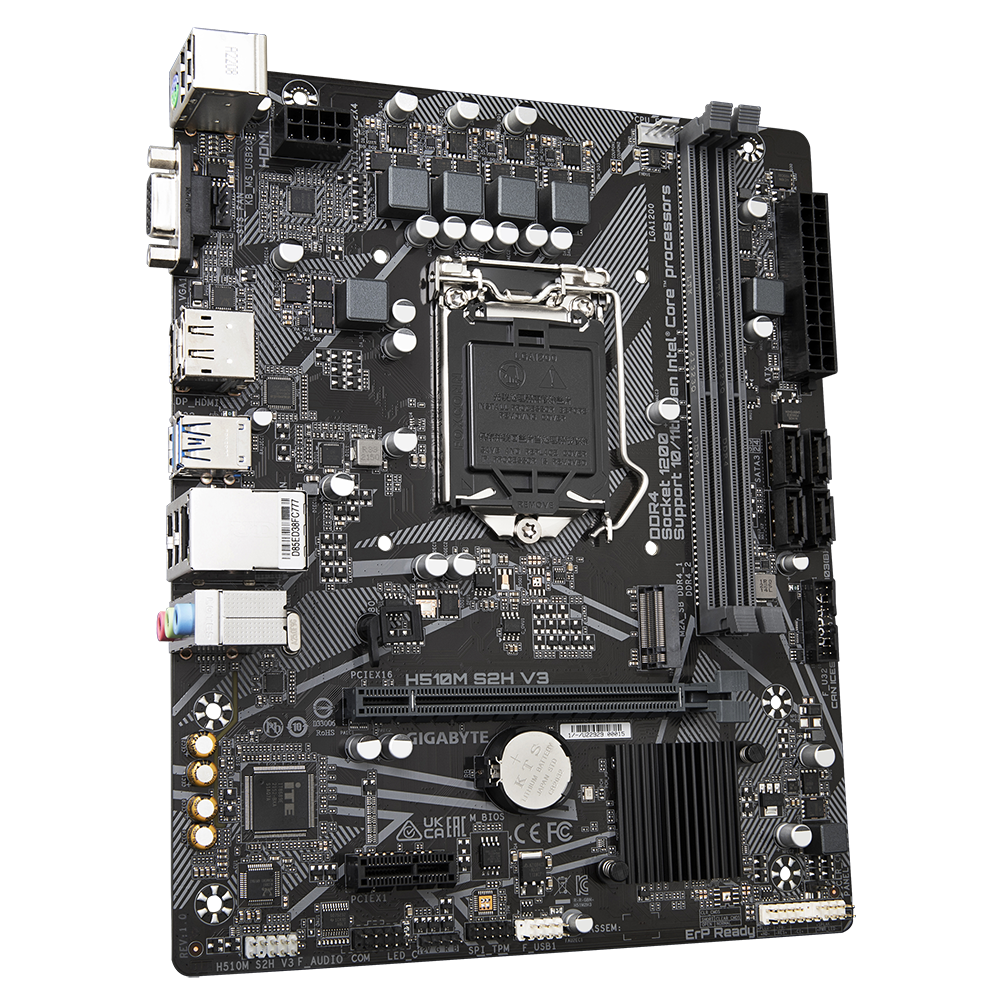

MAINBOARD GIGABYTE H510M S2H V3
Liên HệGọi đặt mua: 08. 38300144 - 62792606
Thông số kỹ thuật
MAINBOARD GIGABYTE H510M S2H V3
Thương hiệu: Gigabyte
Bảo hành: 36 tháng
CPU: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processorsL3 cache varies with CPU
Chipset : H470
Kích thước: Micro ATX Form Factor; 22.6cm x 18.5cm
RAM: 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory.Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Âm thanh: Realtek® Audio CODEC
High Definition Audio: 2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Khe cắm mở rộng:
- 1 x khe cắm PCI Express x16, chạy ở tốc độ x16
- 2 x khe cắm PCI Express x1
Lưu trữ:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
Đầu nối I/O bên trong:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

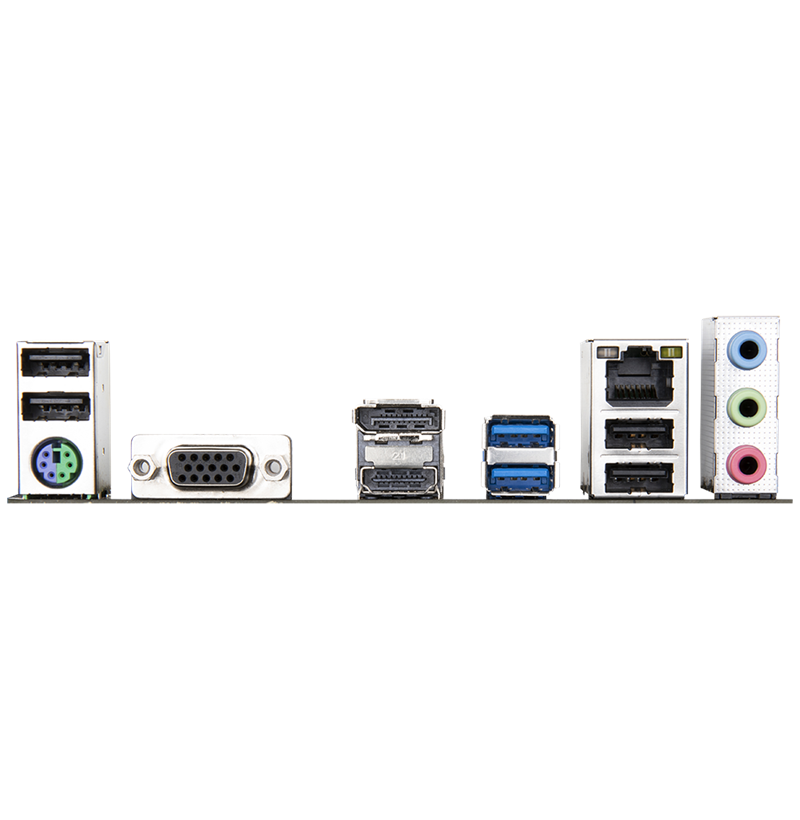

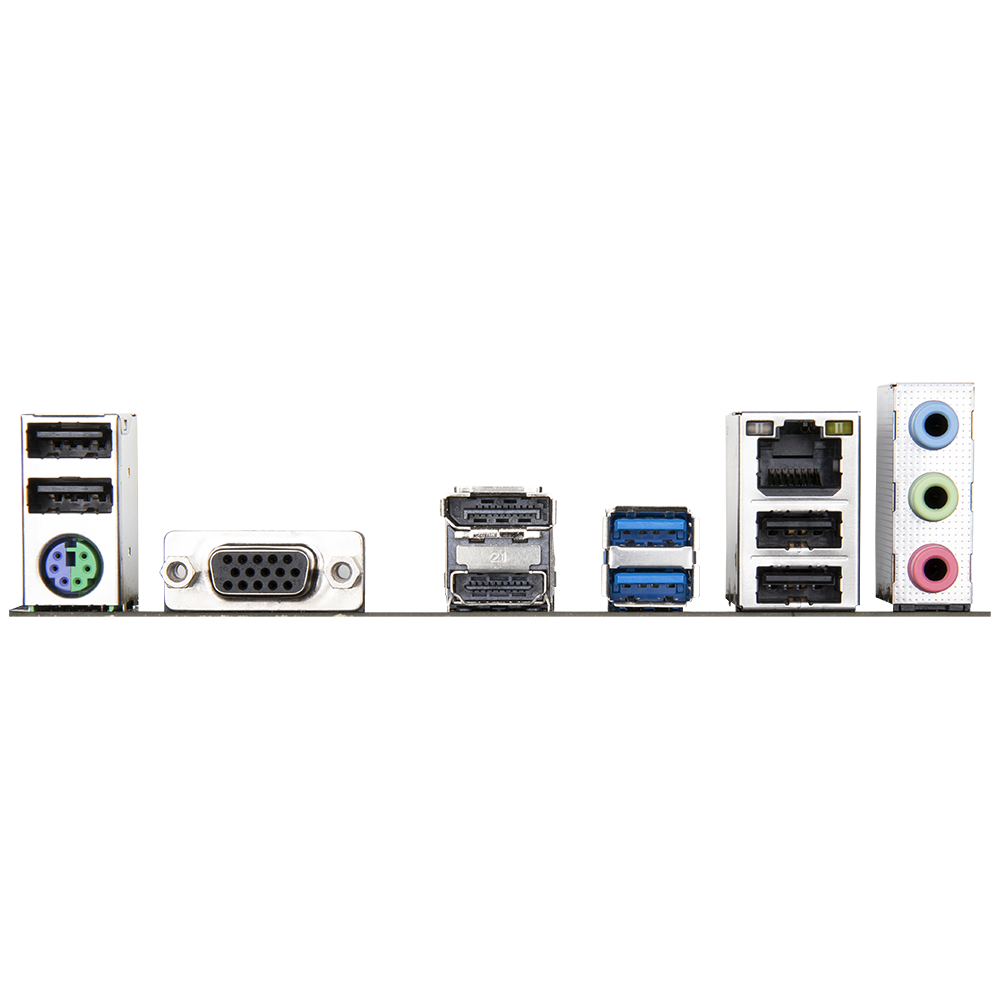

Cổng xuất hình:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
