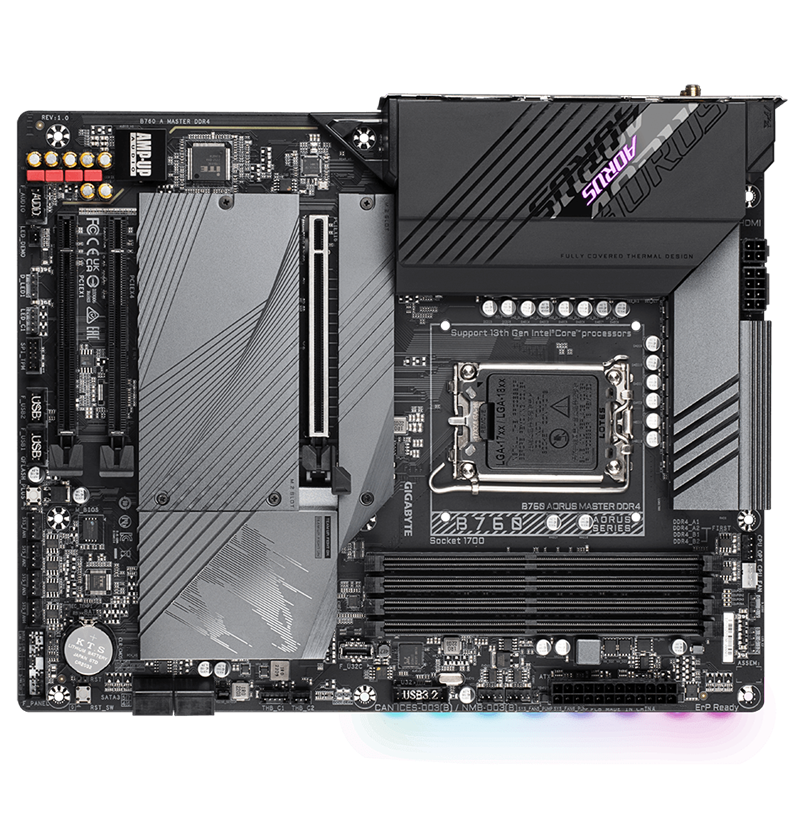

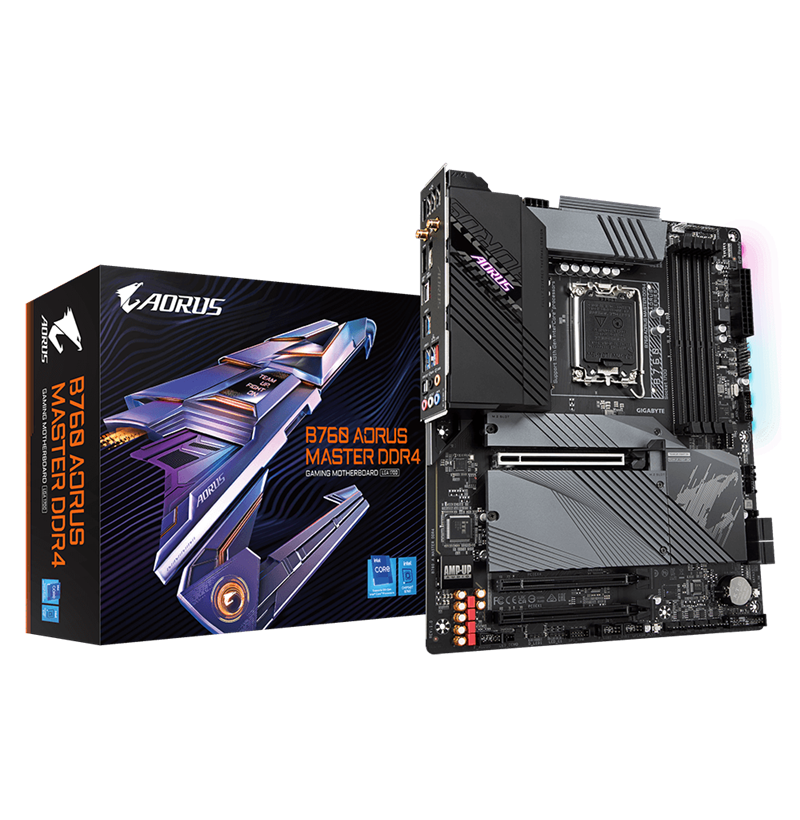

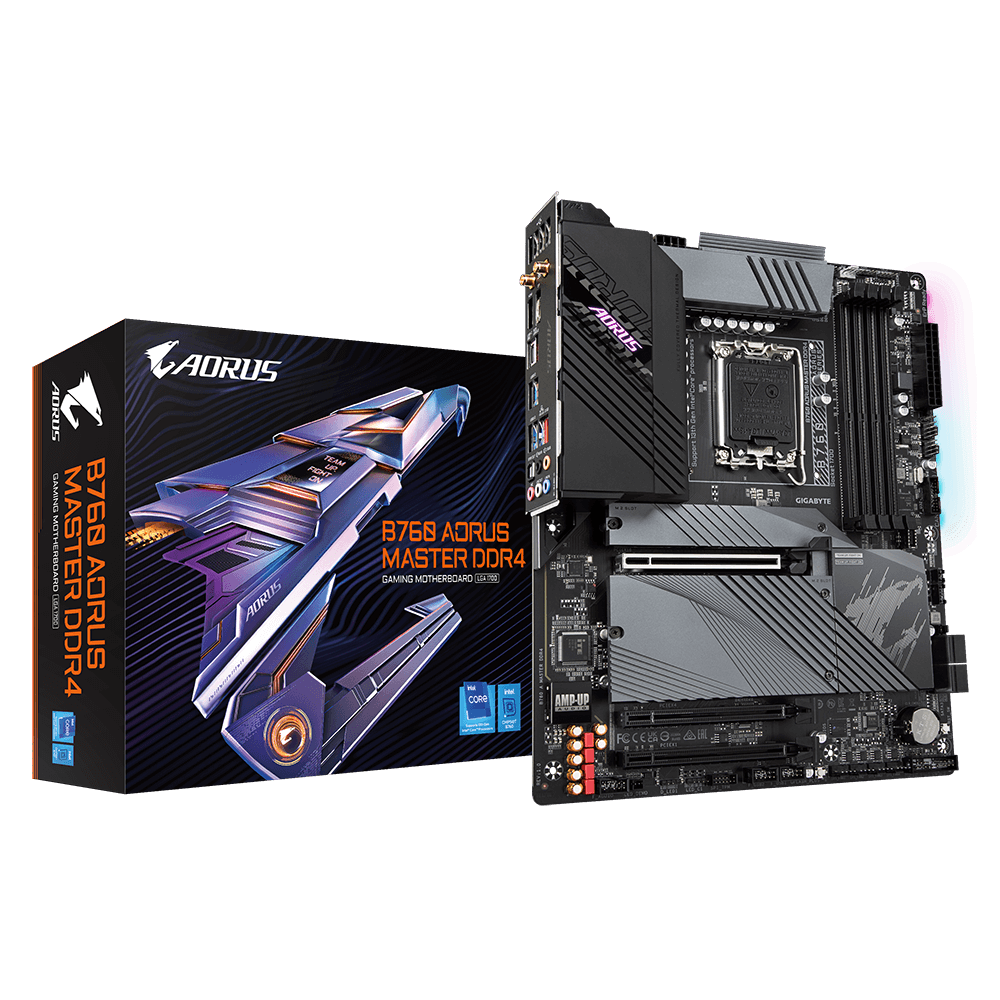

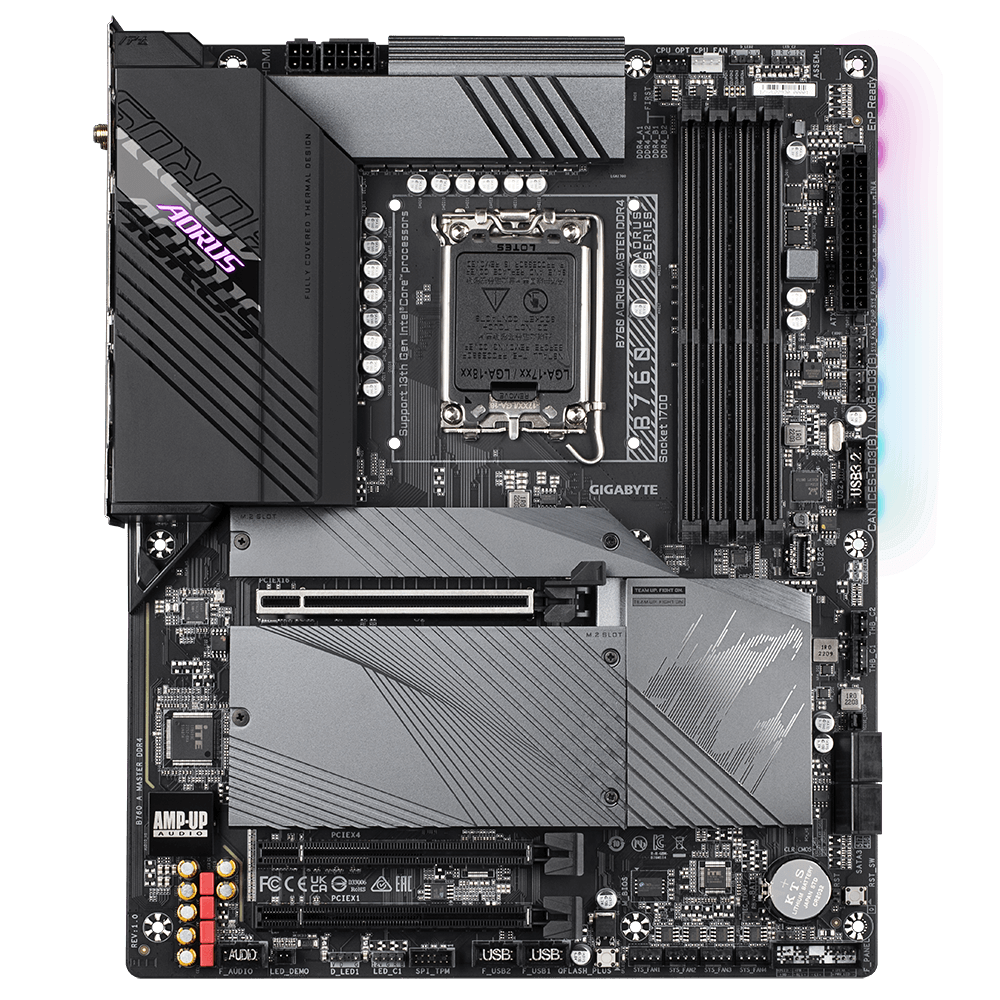

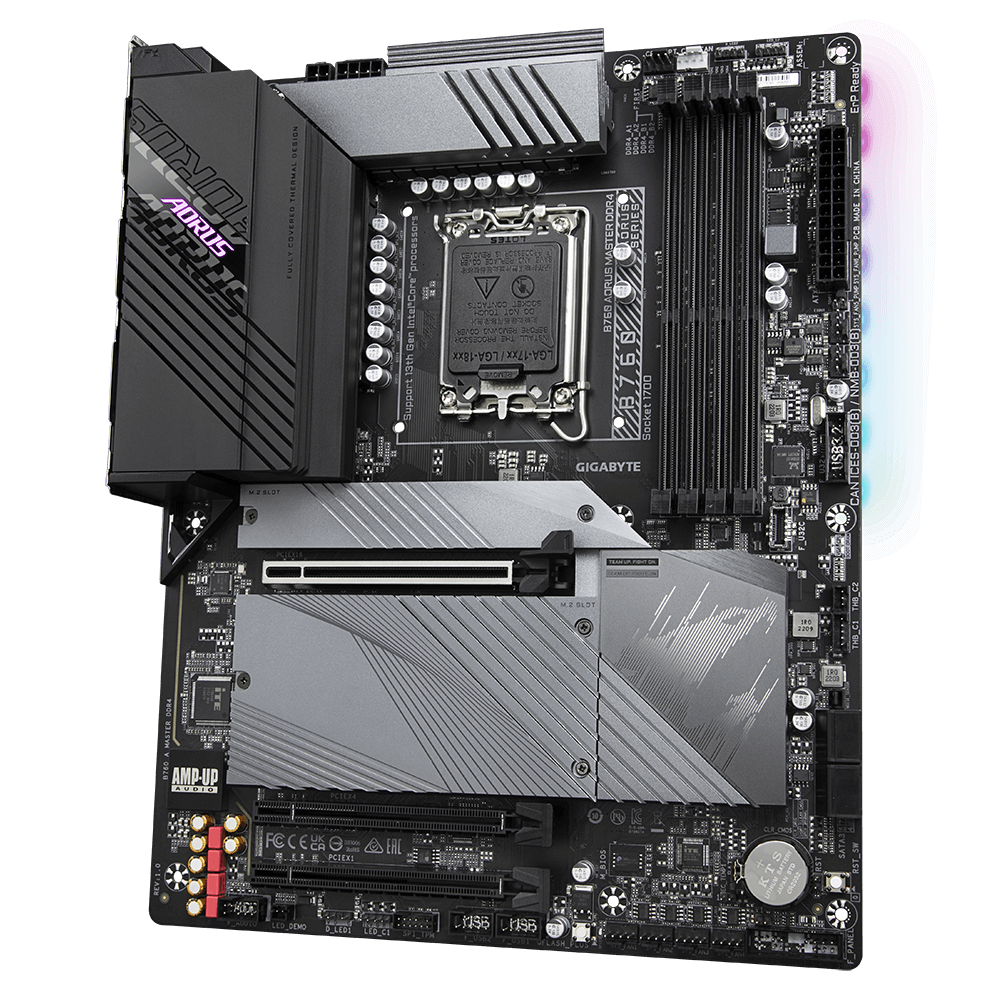

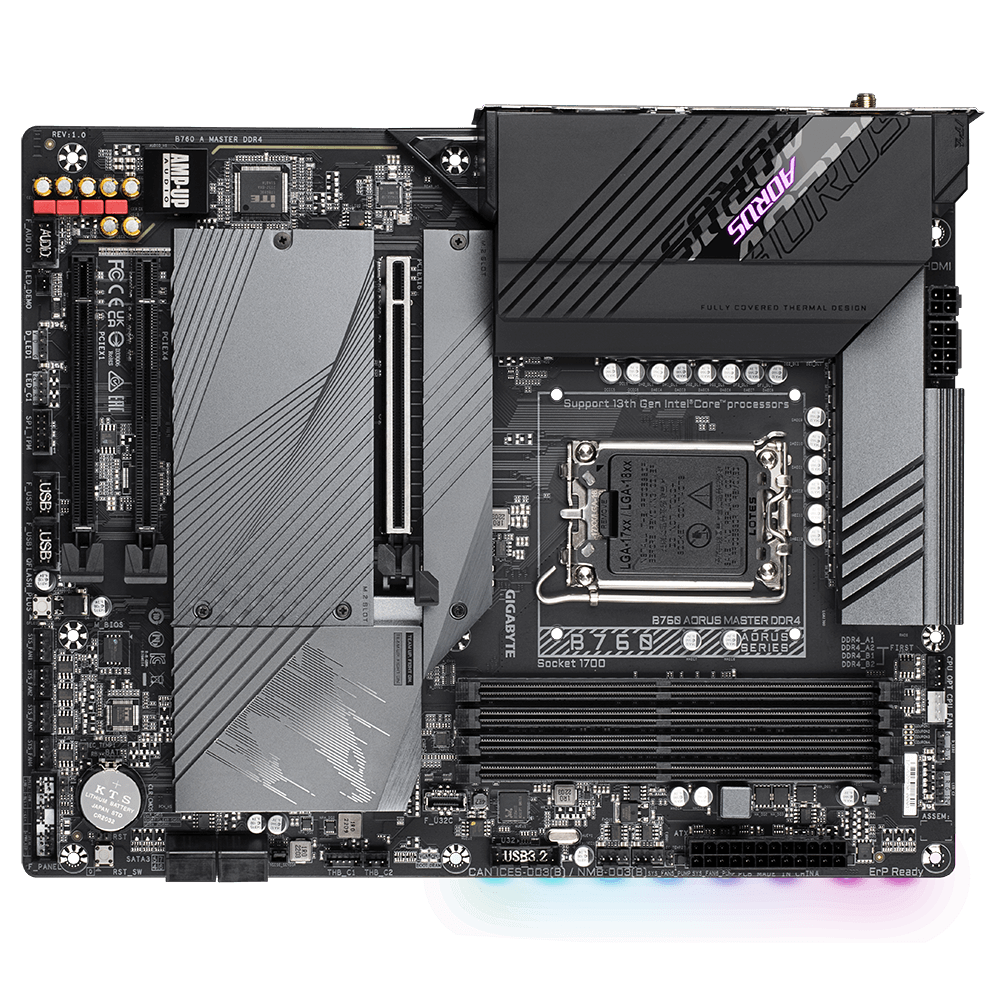

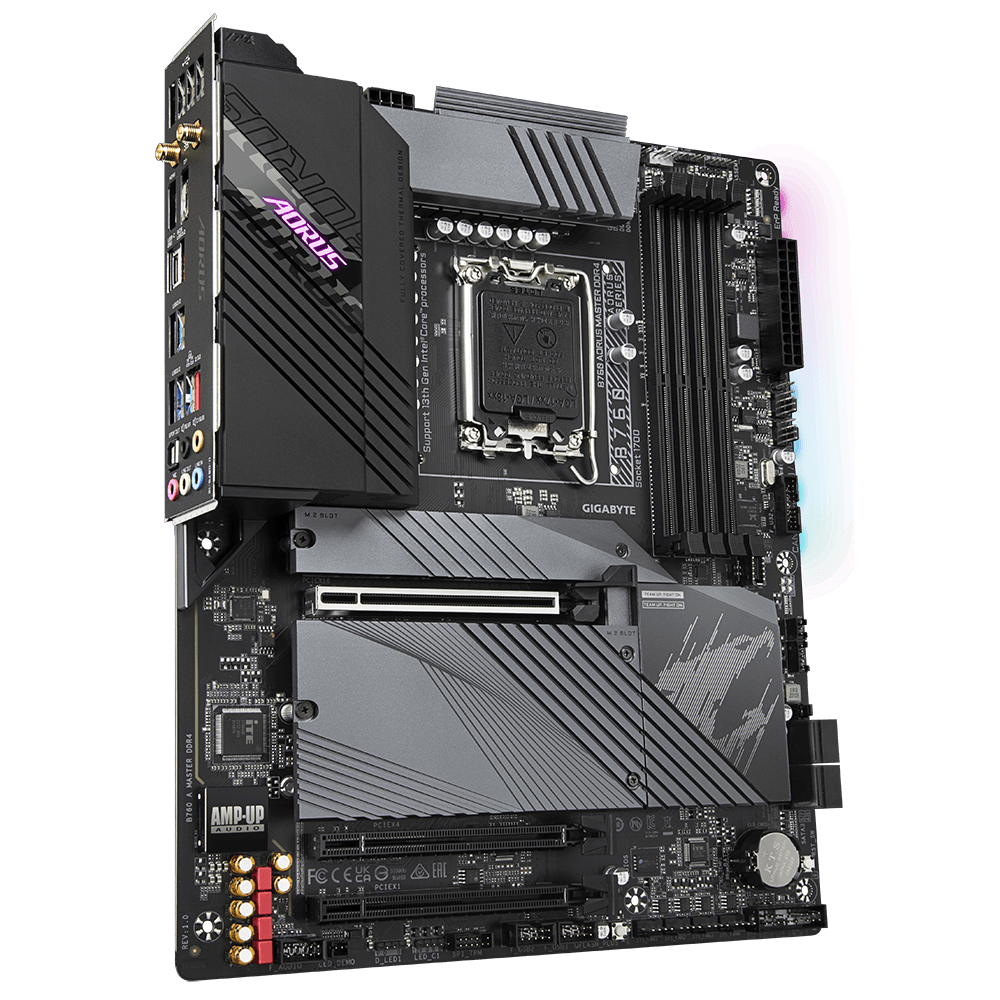

MAINBOARD GIGABYTE B760 AORUS MASTER DDR4
Liên HệGọi đặt mua: 08. 38300144 - 62792606
Thông số kỹ thuật
MAINBOARD GIGABYTE B760 AORUS MASTER DDR4
Thương hiệu: GIGABYTE
Bảo hành: 36 tháng
Series mainboard: AORUS MASTER
CPU hỗ trợ: Intel
Chipset: B760
RAM hỗ trợ:
- Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, running at x1 (PCIEX1)
Ổ cứng hỗ trợ:
- CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal):
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers

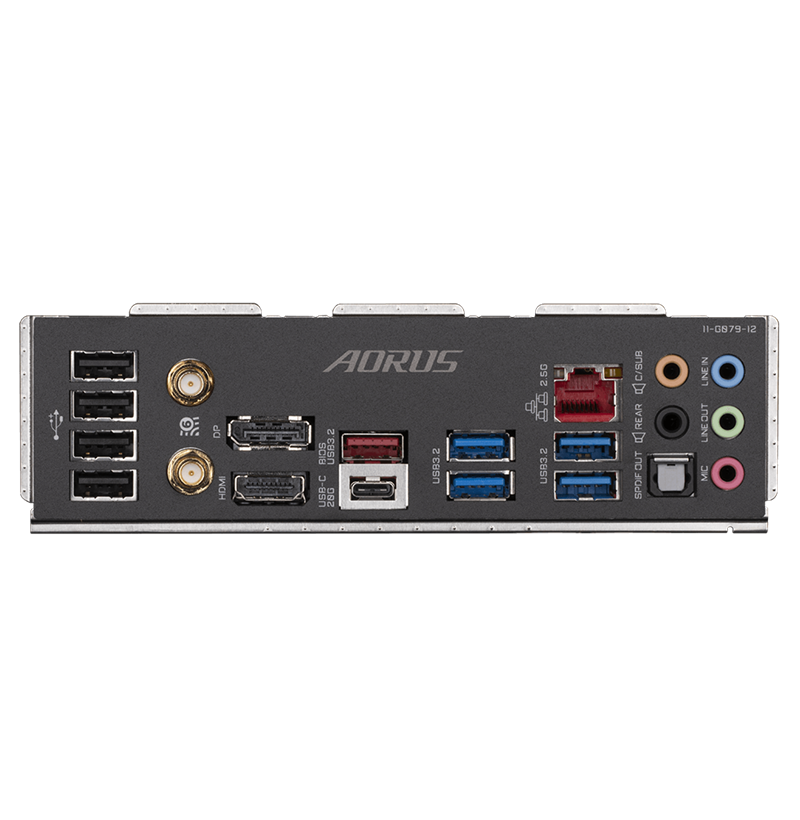

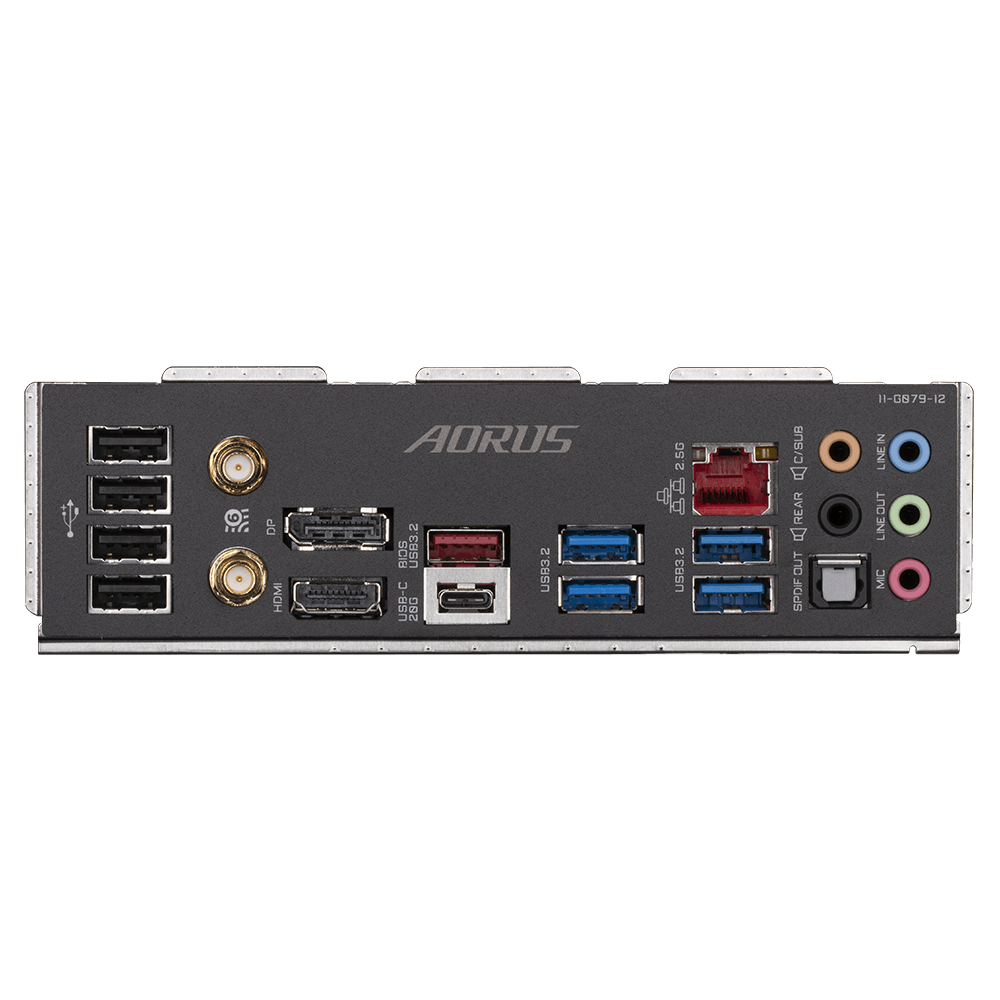

Cổng kết nối (Back Panel):
- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
LAN / Wireless:
- Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Intel® Wi-Fi 6E AX211
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ: ATX Form Factor; 30.5cm x 24.4cm
