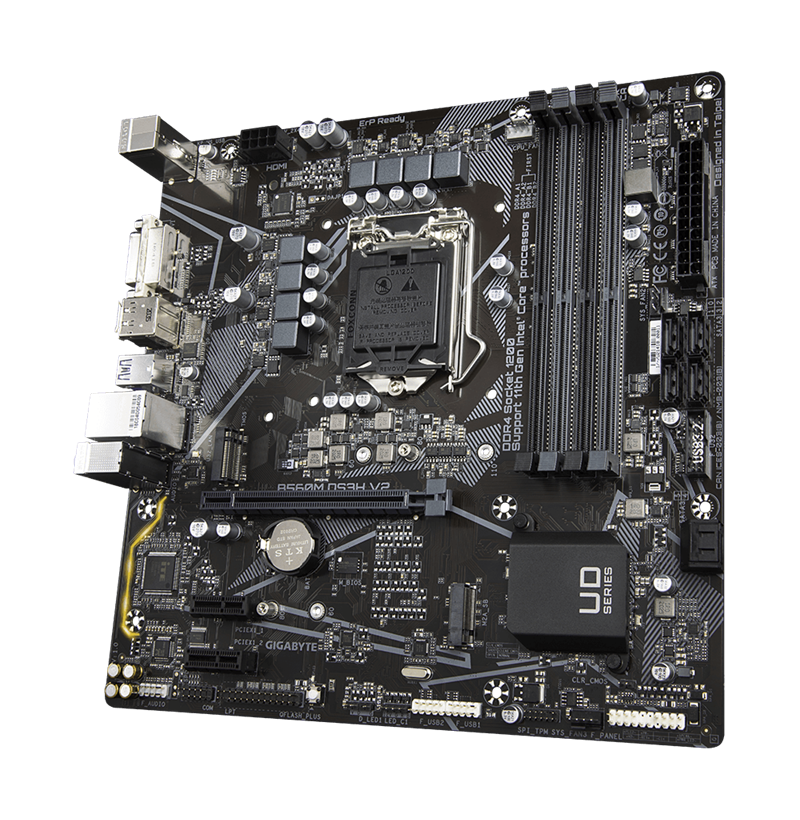

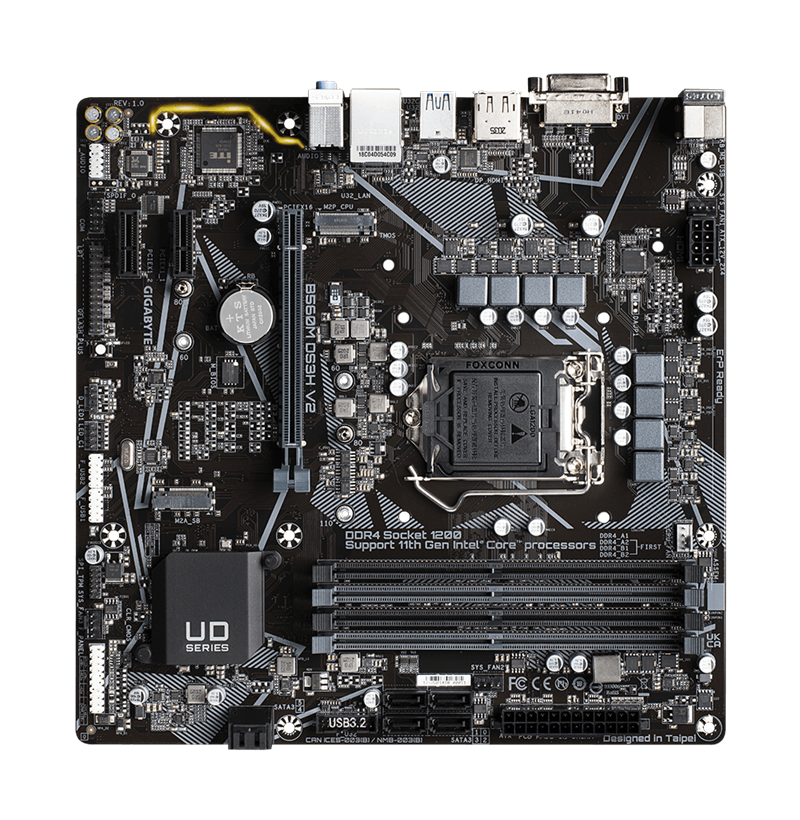

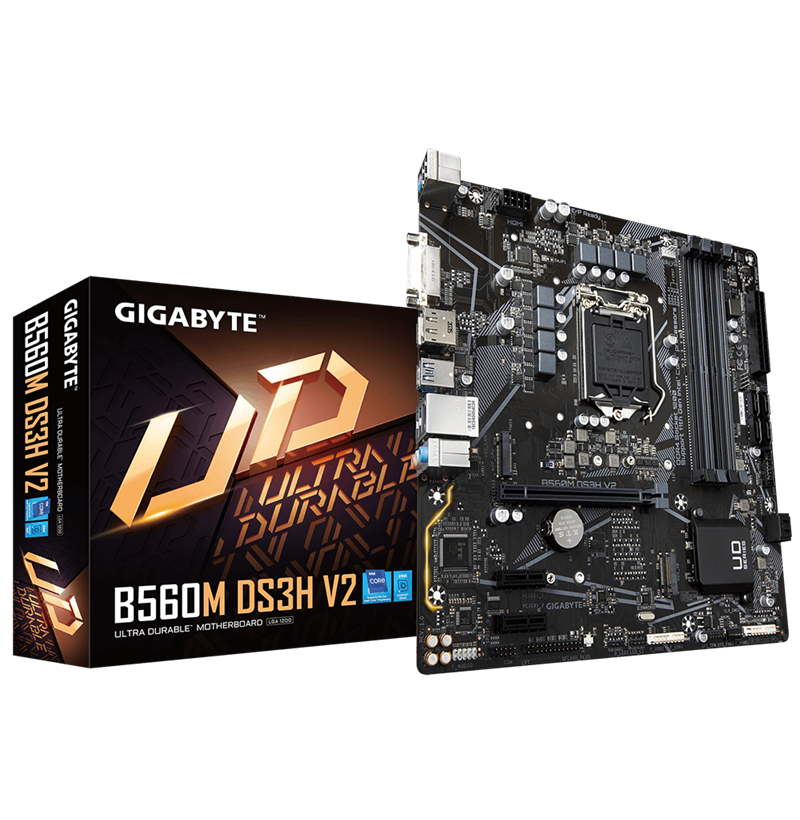

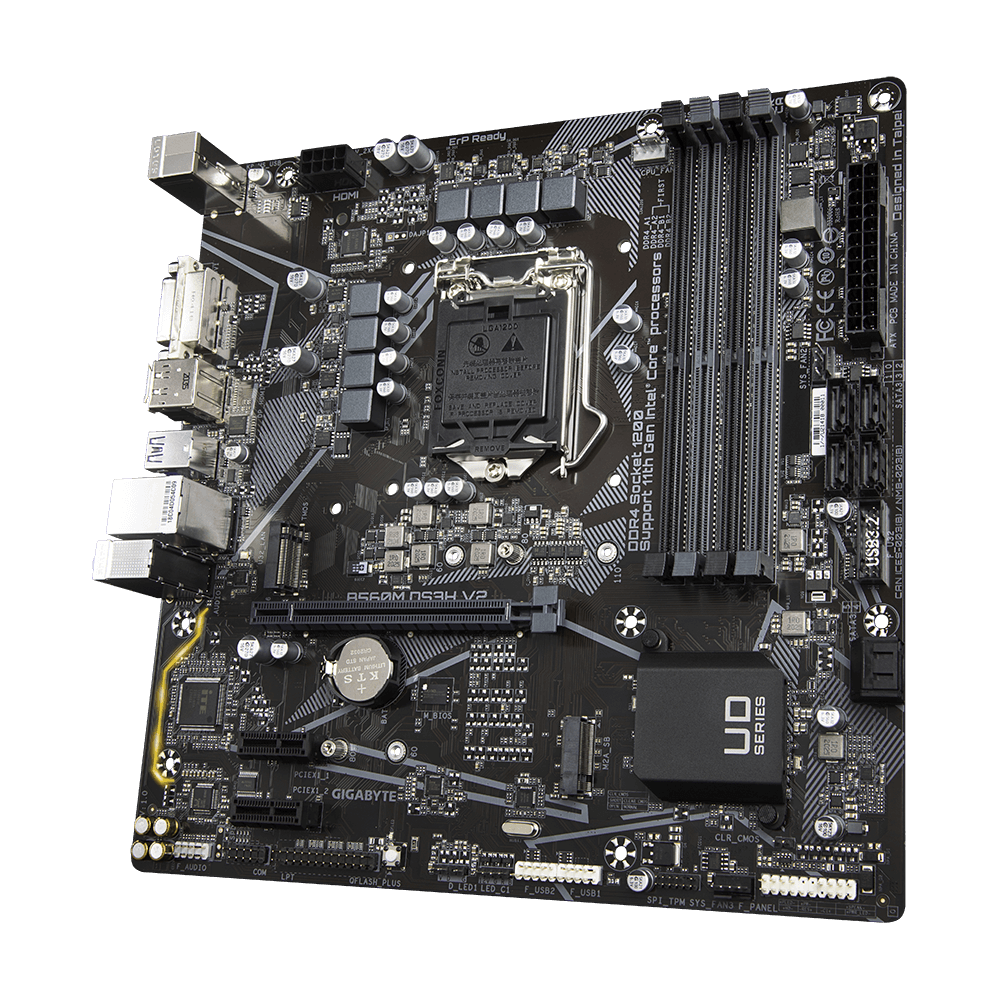

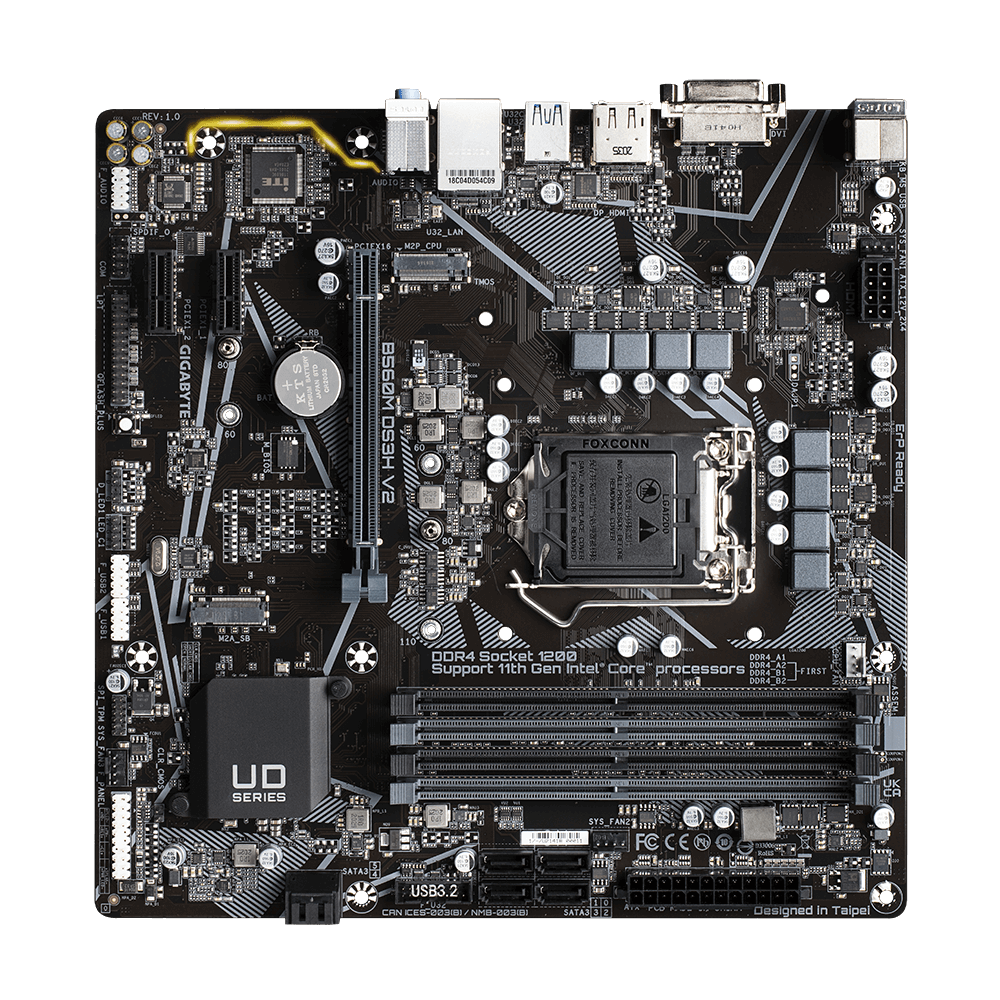

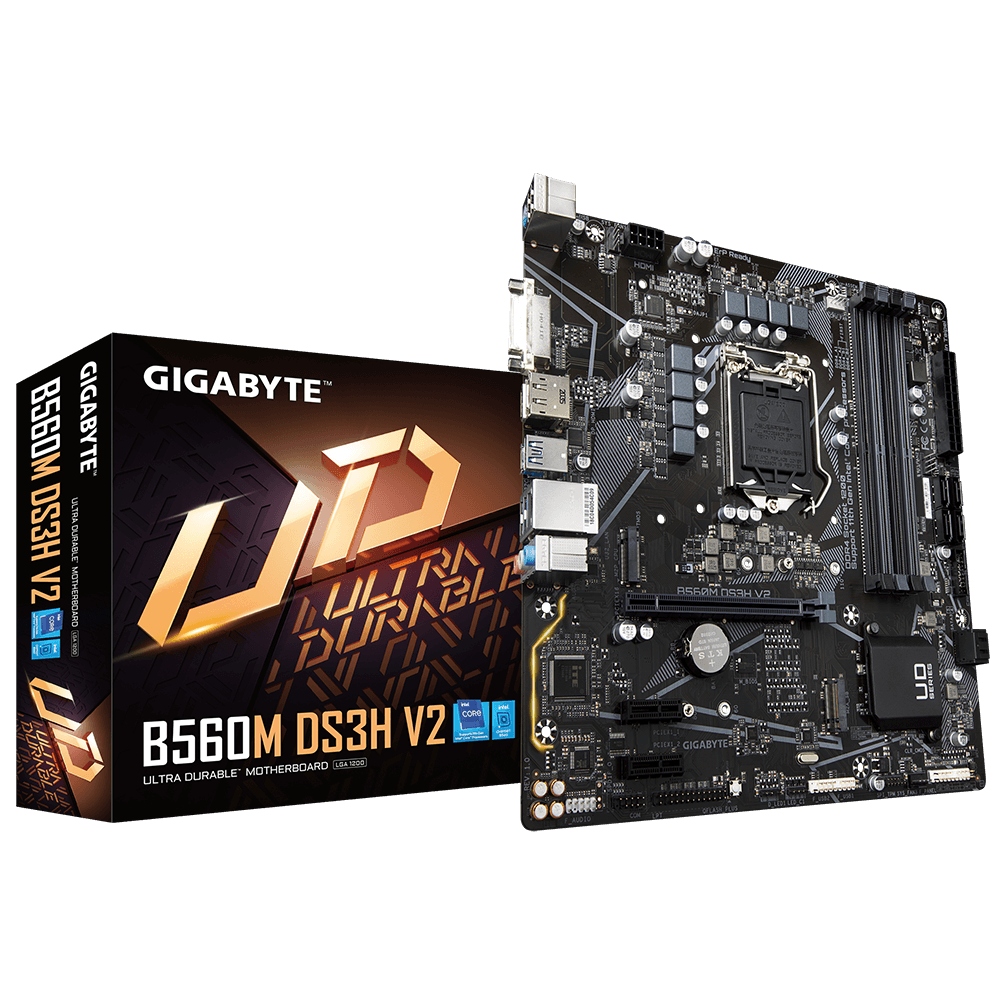

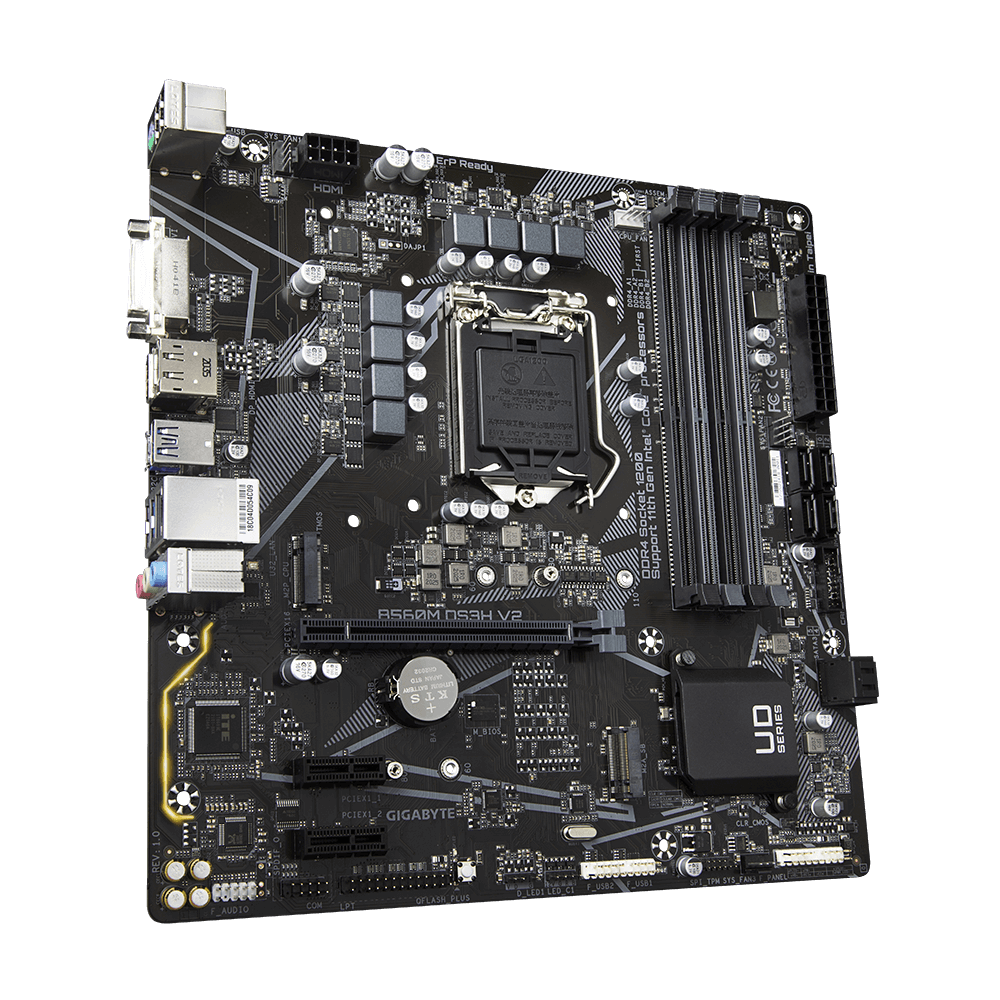

MAINBOARD GIGABYTE B560M DS3H V2
Liên HệGọi đặt mua: 08. 38300144 - 62792606
Thông số kỹ thuật
MAINBOARD GIGABYTE B560M DS3H V2
Thương hiệu: GYGABYTE
Chipset: Intel
Socket: LGA 1200
Kích thước: M-ATX
Khe RAM tối đa: 4
Kiểu RAM hỗ trợ: DDR4
Dung lượng RAM tối đa: 128GB
Bus RAM:
1. 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
2. 10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Lưu trữ:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
- Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors

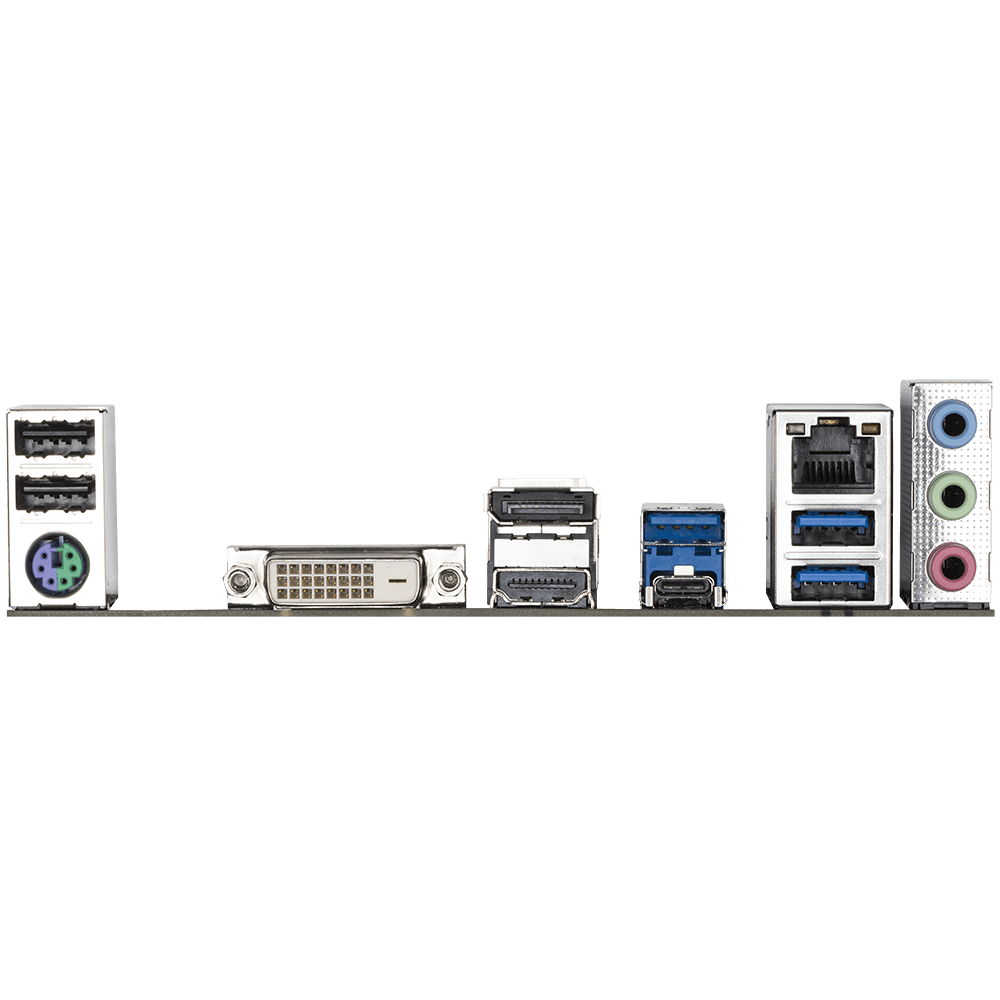

Cổng xuất hình:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.3.
Khe PCI:
- 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
- 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Số cổng USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 5 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
LAN: Realtek® GbE LAN chip (1000/100 Mbit)
Âm thanh: Realtek® Audio CODEC
Kết nối:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3
